20 Channel Rolling & Fixed Code 280-868 Mhz Universal Remote Duplicator For Roller Shutter Gate Barrier Opener

Product Overview

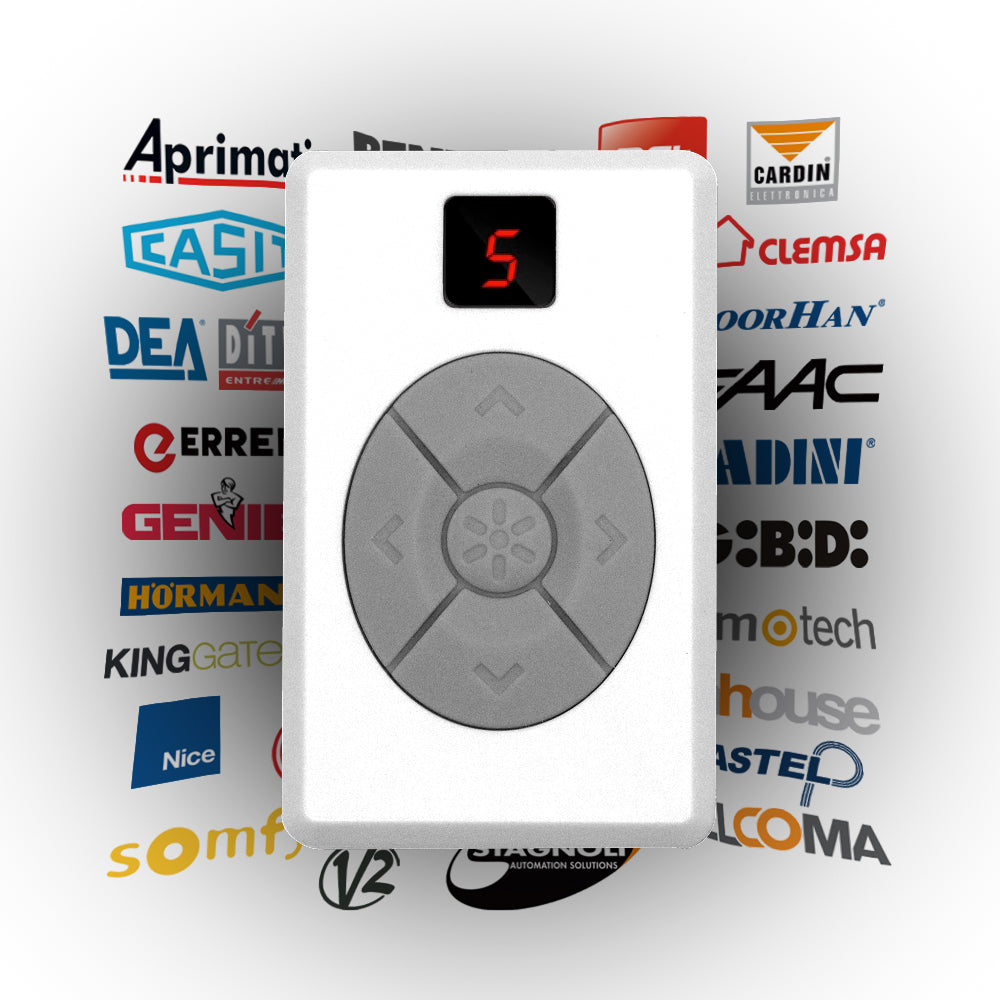

The 20 Channel Rolling & Fixed Code 280-868 Mhz Universal Remote Duplicator is designed for copying a wide range of fixed-code and rolling-code garage door openers, electric vehicle gates, roller shutter doors, telescopic gates, and barrier gates. This remote can copy a variety of frequencies from 280 MHz to 868 MHz, offering versatile functionality. It’s ideal for users needing to manage multiple devices with one remote.

---

Product Features

• Multiple Channels: This remote control allows users to select from 1-5 Mode (4 channels each), with customizable settings for each channel.
• Wide Frequency Range: Supports frequencies from 280 MHz to 868 MHz, covering a broad spectrum of devices.
• High Compatibility: Can copy both fixed-code and rolling-code signals for a variety of devices.
• Long Range: Operates within an open-area distance of up to 30 meters, providing excellent coverage for larger properties or multiple devices.
• Easy to Use: User-friendly copying process with clear visual indicators for successful data capture.
• Durable and Reliable: Constructed from ABS plastic for durability, this remote is designed to perform reliably even in extreme temperatures (-20°C to +50°C).

---

How It Works

1. Select Channel: Press the center button to select a channel (1-5). If no operation occurs within 8 seconds, the display will turn off.
2. Enter Copy Mode: Hold down the left button, then press the right button four times. Release all buttons to enter the copying mode. The display will flash every 2 seconds to indicate readiness.
3. Transmit Data: Press and hold the original remote's button (e.g., unlock button). The display will flash rapidly to confirm data reception. For optimal results, the two remotes should be placed about 3 cm apart.
4. Save Data: Choose the key to store the copied data (e.g., press the up key to save). The key will now be programmed to match the original remote. Repeat the process for all additional keys.

---

Other Copy Modes

• Special Copy Mode: If the standard mode does not work, press and hold the left button, then press the up button four times to enter the special mode. This mode will copy encrypted remotes or other special signals.
• Barrier Gate Mode: For specific barrier gates, press and hold the right and up buttons simultaneously, then release. This mode is optimized for certain gate remotes.

---

Product Applications

1. Suitable for copying up to 20 Channels with one device.
2. Can copy 250-868 MHz fixed-code remote controls.
3. Compatible with sliding doors, automatic doors, rolling doors, and more.
4. Ideal for ceiling fans, barriers, parking lots, and other venues.
5. Open area control range: 20-30 meters.

---

Technical Specifications

• Frequency Range: 280-868 MHz
• Operating Temperature: -20°C to +50°C
• Battery: CR2032, 3V
• Material: ABS Plastic
• Range: Up to 30 meters in open area

---



List of Supported Brands and Models

Brand	Supported Models
ADYX	TE4433H BLUE, 433-HG BRAVO
AERF	COMPACT, HY-DOM, MERCURI B, MERCURI C, SABUTON, MARS, SATURN, ST3/N, TERRA, TMP-1, TMP-2, UNITECH
ALLMATIC	BROWN, BROWN RED, BRO.OVER, PASS, MINIPASS, TECH3
APERIO	GO, GO PRO, GO MINI
APERTO	TX02-434-2, TX02-868-2 BLUE, 4025 TX02-868-2, 4022 TX02-434-2, 4020-TX03-434, TX-03-868-4, 4013, TX03-434-4
APRIMATI	TR2/TR4, TM4, TXM
ATA	PTX4 BLUE, PTX4 PINK
AVIDSEN	104251, 104250, 104250 OLD, 104250 RED, 104257, 104350, 654250
BALLAN	FM400, FM400E, FM404B, 4013
BENINCA	TO.GO.WV, TWV, ROLLKEY, APPLE, LOT WCV, CUPIDO, TO.GO.QV, IO, LOT2WCV, LOT1W, LOT2W, LOT4W, LOT1WM, LOT2WM, T2W, T4W, APPLE
BESIDE	BEZAP, HIT
BFT	MITTO, MITTO M (MITTO2M, MITTO4M), MITTO RCB (MITTO RCB02, RCB04), MITTO A (MITTO 2A, MITTO 4A), MITTO B, TRC (TRC2, TRC4), GHIBLI, MURALE, KLEIO, TE01, TE02, TE04, RB4 MURALE
CAME	T431, T434, TOP432A, TOP434A, TOP432, TAM432SA, TOP432NA
CARDIN	TRQ S449 (TRQ449100, TRQ449200, TRQ449300, TRQ449400), TRQ S449 GREEN (PRECODE), TXQ S449 (TXQ449200, TXQ449300, TXQ449400), TXQ S449 GREEN, TRQ S486 (TRQ486200, TRQ486400), TXQ S486 (TXQ486200, TXQ486400)
CASALI	JA33 AMIGO, GENIUS, CASALI A252RC
CASIT	ERTS92B, ERTS92T, ERTS476D, ERTS20DQ, ERTS476Q
CELISA	S10 1, S10 2
CENTURION	CLASSIC, SMART
CHAMBERLAIN, LIFTMASTER	953ESTD, 371 LM, 971 LM, 84330E, 94334CE, 94333E, 94334E, 94335E, 9747E, 1A5639-7, 1A5477, 1A6487, 132B2372
CLEMSA	MUTANCODE, T, T-8, E-CODE N, MASTERCODE MV
CPS	TCP3, CPS1, CPS2, CPS4
DASPI	HAPPY2, POPS 2, ZERO RC (ZERO 2RC, ZERO 4RC)
DEA SYSTEM	TR MIO, 133 1, 433 2, 433 4, GENIE, PUNTO S2, PUNTO 278, GOLDR, GENIE R 273, GENIE R-GT2N
DELMA	MIXARD 433 1, MIXARD 433 2, KING 433 2
DICKERT	MAHS433 01, MAHS433 04
DITEC	GOL, GOL4C, BIXLS2, BIXLP2, BIXAG4, BIXLG
