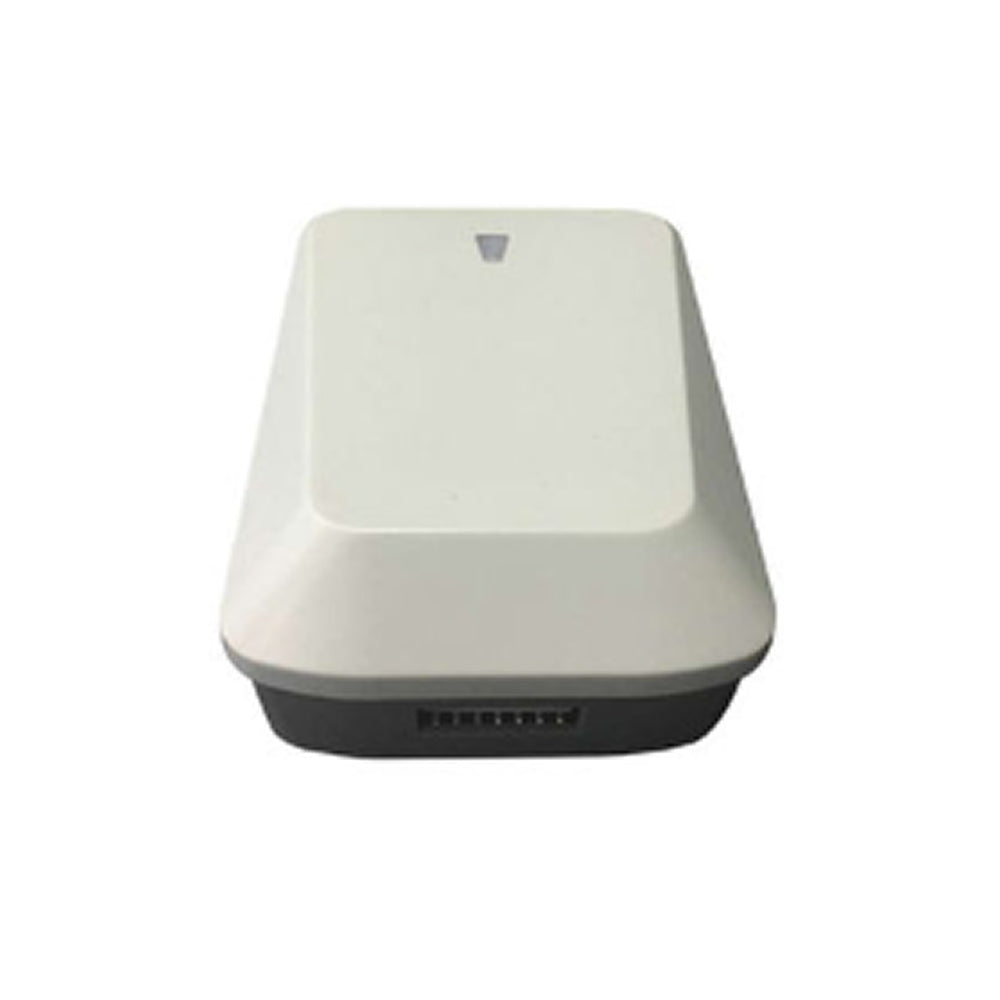

220V AC Roller shutter Sliding Gate Receiver Opener Receiver Wireless Control

Product Overview

The 220V AC Sliding Gate or Automatic Gate Opener Receiver is a reliable and easy-to-use solution for controlling roller shutters, garage doors, and automatic gates. This receiver features wireless control, wide operational range, and supports various code formats, ensuring compatibility with most systems. Designed for both residential and commercial use, it offers enhanced convenience and security for opening and closing gates or doors.

Key Features

• Universal Compatibility: Works with roller shutters, garage doors, and automatic gates.

• Frequency: Operates at 433.92 MHz for consistent performance.

• Code Formats: Supports rolling codes like HCS301, SC2260, and EV1527, making it compatible with a wide range of remote controls.

• Operating Distance: Offers an impressive operational range of up to 100m (depending on conditions), with a range of 60-150m in unobstructed areas.

• Memory Capacity: Can store up to 140 remote controls for easy integration with multiple devices.

• Working Voltage: 220V AC, suitable for standard residential or commercial setups.

• Durable Build: Constructed from both plastic and metal for robustness and long-term use.

• Low Power Consumption: Static current of 5mA±2 and working current of 50-200mA, ensuring energy efficiency.

• Temperature Range: Operates in temperatures ranging from -25°C to +85°C, suitable for various climates.

• Output Mode: Provides both continuous output (bistable) and momentary output (monostable) for flexible use.

Specifications

• Product Name: Tubular Motor Wireless Control Receiver
• Channel: 2-CH (1CH optional)
• Frequency: 433.92 MHz
• Code: HCS301, SC2260, EV1527, etc.
• Receiver Mode: Superheterodyne
• Working Voltage: AC 220V
• Static Current: 5mA ± 2
• Working Current: 50-200mA
• Range: 60-150m in unobstructed area
• Memory Capacity: 140 remote controls
• Control Mode: Continuous output (bistable) or momentary output (monostable)
• Receive Sensitivity: -113dBm (max)
• Dimensions: 1257535mm
• Net Weight: 96g
• Output Mode: Dry contact
• Operation Temperature: -25°C to 85°C
• Input Voltage: AC 220V
• Output Voltage: AC 220V/2A

Certifications

• CE
• ROHS
• FCC
• ISO9001
• TUV
