Tubular Motor Receiver Wireless Control Board for Roller Shutters & Garage Doors

Product Overview

The Tubular Motor Wireless Receiver/Controller Board is a versatile and high-performance device designed to control roller shutters, garage doors, and other automatic gate systems. This receiver is compatible with a wide range of remotes and operates over a distance of up to 100 meters, ensuring reliable and easy access control for both residential and commercial applications.

Key Features

• Universal Compatibility: Ideal for roller shutters, garage doors, and automatic gate systems.

• Frequency: Operates at 433.92 MHz, offering reliable signal transmission.

• Code Support: Compatible with various rolling codes including HCS301, SC2260, EV1527, etc.

• Long Operational Range: Reach up to 100 meters with unobstructed signals, ensuring flexibility in installation locations.

• Memory Capacity: Can store up to 140 remote controls, making it easy to manage multiple users or devices.

• Control Modes: Supports both continuous output (bistable) and momentary output (monostable) for different application needs.

• Low Power Consumption: Static current of 5mA ± 2 and working current of 50-200mA for energy efficiency.

• Temperature Range: Withstands temperatures from -25°C to 85°C, suitable for various environmental conditions.

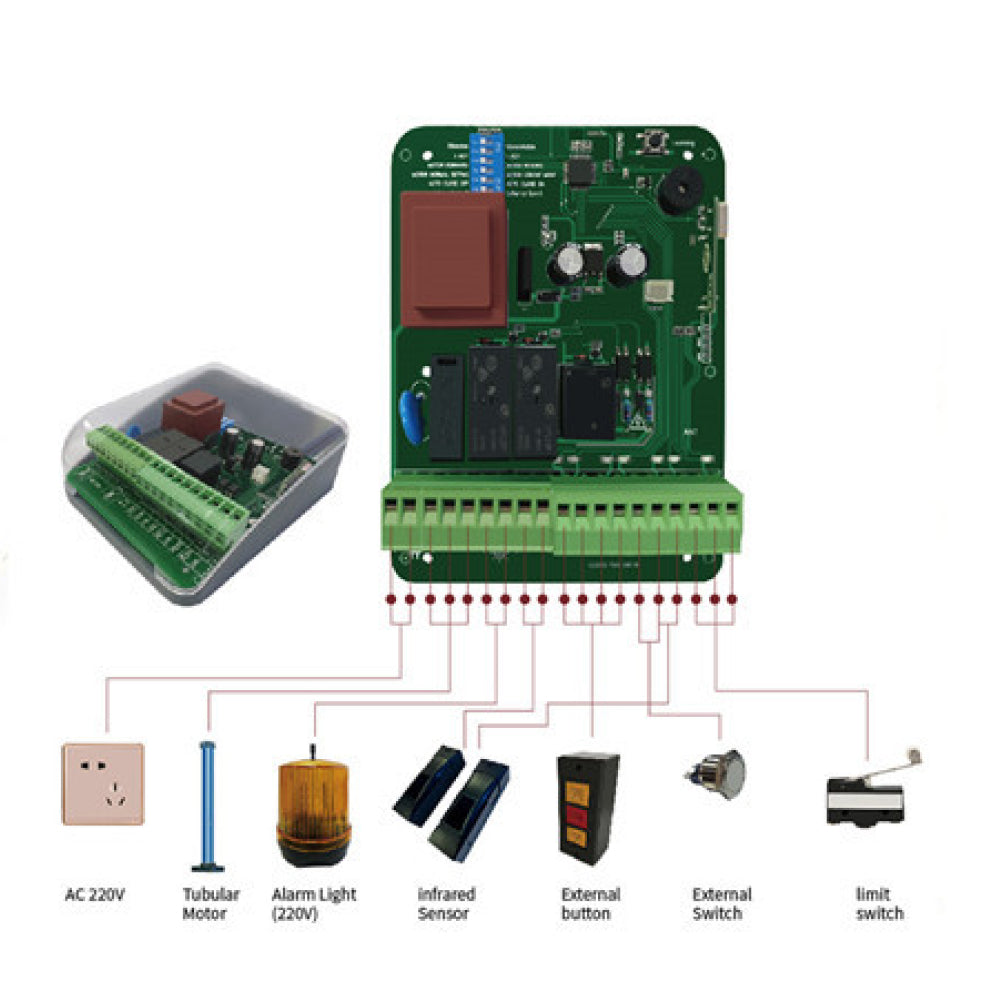

• Easy Installation: Features a terminal block for simple wiring and setup.

• Durable Design: Constructed with a combination of plastic and metal for robustness.

• Certification: CE, ROHS, FCC, ISO9001, and TUV certified for quality assurance.

Specifications

• Product Name: Tubular Motor Wireless Receiver/Controller Board
• Channel: 2-CH (1CH optional)
• Frequency: 433.92 MHz
• Code Support: HCS301, SC2260, EV1527, etc.
• Receiver Mode: Superheterodyne
• Working Voltage: AC 220V
• Static Current: 5mA ± 2
• Working Current: 50-200mA
• Operational Range: 60-150m in unobstructed area
• Memory Capacity: 140 remote controls
• Control Mode: Continuous output (bistable) or momentary output (monostable)
• Receiver Sensitivity: -113dBm (max)
• Dimensions (L x W x T): 1257535mm
• Net Weight: 96g
• Output Mode: Dry contact
• Operating Temperature: -25°C to +85°C
• Input Voltage: AC 220V
• Output Voltage: AC 220V/2A
