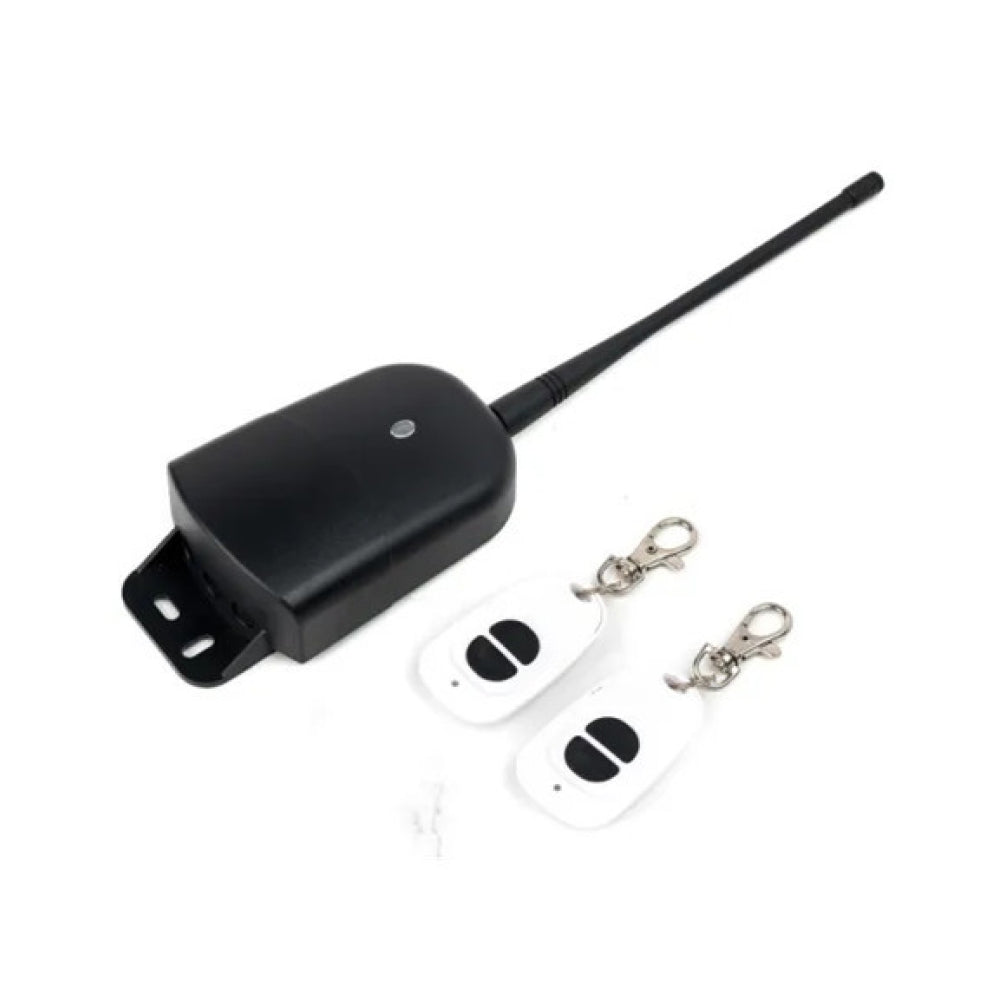

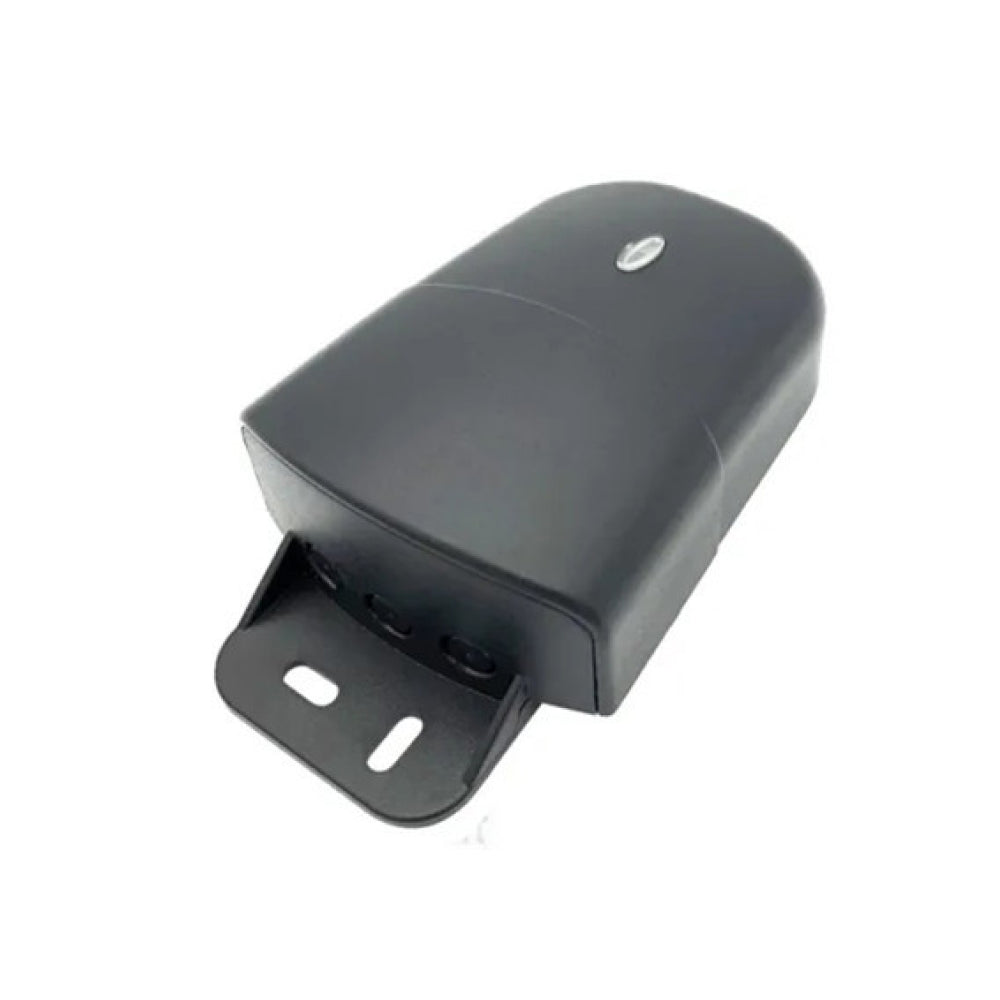

3-Channel Sliding Door Receiver and Remote Control

Product Overview

The 3-Channel Sliding Door Receiver and Remote Control is a versatile and easy-to-use receiver designed for a wide range of applications, including sliding doors, car doors, rolling doors, ceiling fans, and alarm systems. It offers both bistable (continuous output) and monostable (momentary output) modes for flexible control. The receiver is programmable with different code remotes based on your specific requirements, making it highly adaptable for various devices.

Key Features

• Multiple Code Options: The receiver can be produced with different code remotes, tailored to your needs.

• Bistable & Monostable Modes: Allows selection between continuous (bistable) or momentary (monostable) output for each channel.

• LED Indicators:

  • Green LED: Power indicator.
  • Red LED: Learning code indicator.

• Wide Application: Commonly used for motorcycle alarm receivers, electric vehicle alarm receivers, sliding door receivers, car door receivers, rolling door receivers, ceiling fan receivers, and more.

• Easy Learning Process: Simple programming process using the S1 (monostable) and S2 (bistable) learning buttons to match the receiver with remote control codes.

• Password Clearing: The learning codes can be cleared easily by long-pressing S1 or S2 for 5 seconds, ensuring the receiver can be reset without complications.

How It Works

1. Monostable Learning Code:

   • Press S1 once to initiate learning.
   • The Red LED will light up and flash once (for the first relay), then twice (for the second relay), and so on for each subsequent relay.
   • When the remote control successfully sends its code, the Red LED will turn off, and the corresponding relay will close.

2. Bistable Learning Code:

   • Press S2 once to begin the learning process.
   • The Red LED will light up and flash once for the first relay, twice for the second relay, and so on.
   • After successfully learning the remote control signal, the Red LED will go off, and the relay will close.

3. Clearing Codes:

   • To delete learned codes, press and hold S1 or S2 for 5 seconds until the Red LED flashes and then turns off, indicating that the codes have been cleared.

Specifications

• Product Name: 3-Channel Sliding Door Receiver and Remote Control
• Channels: 3 independent channels, configurable with bistable or monostable operation modes
• Frequency: Compatible with a variety of remote control codes
• Power Supply: Typically 12-24V DC/AC (depending on application)
• Control Mode: Bistable (continuous output) or Monostable (momentary output)
• LED Indicators: Green for power, Red for learning mode
• Learning Buttons: S1 (monostable) and S2 (bistable)
• Clear Codes: Press and hold S1 or S2 for 5 seconds to delete learned codes
• Application: Sliding doors, garage doors, rolling doors, ceiling fans, vehicle alarm systems, and more
• Dimensions: Compact design suitable for a variety of installations
