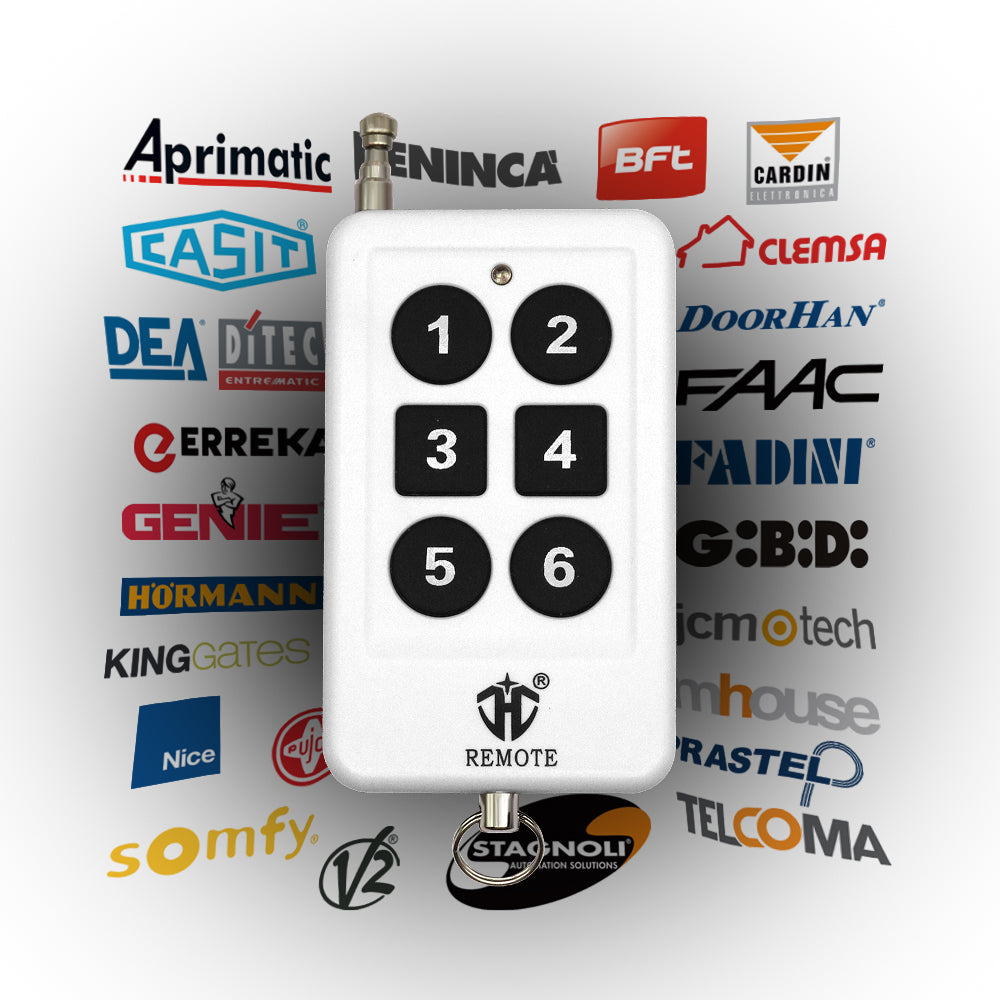

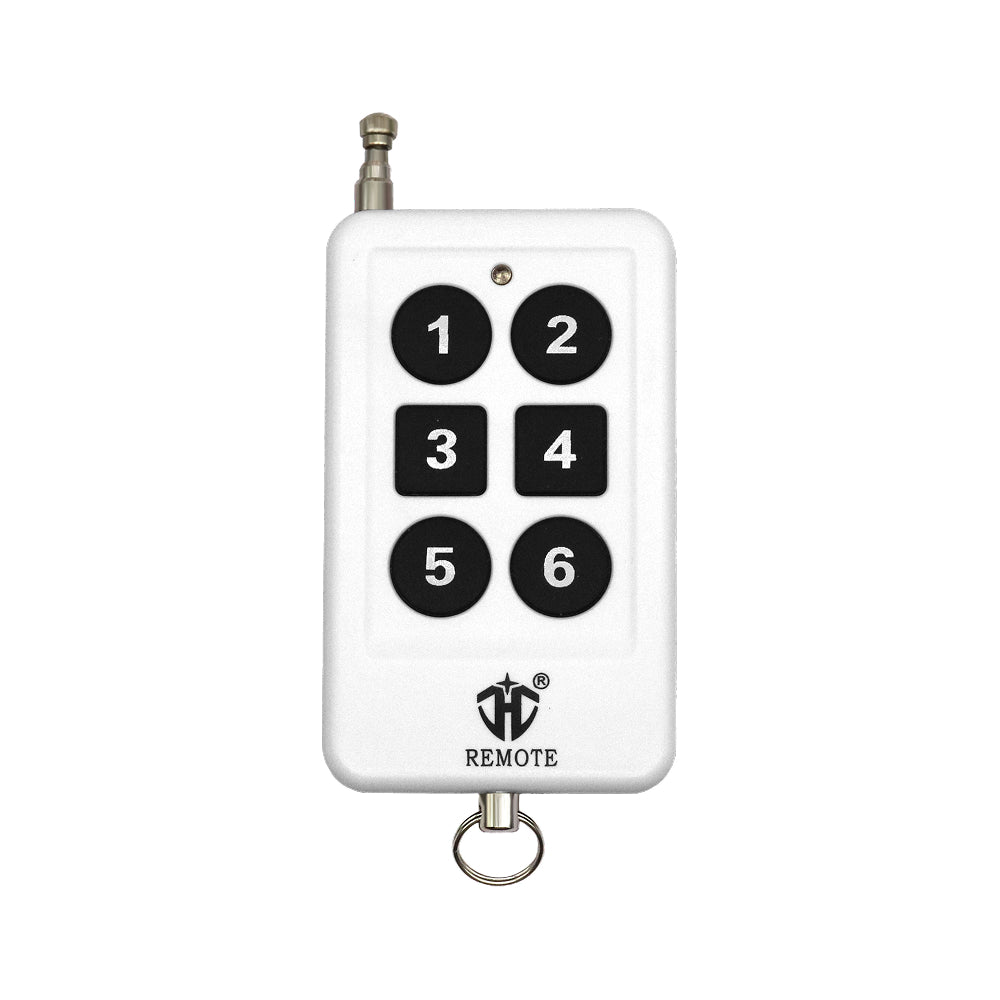

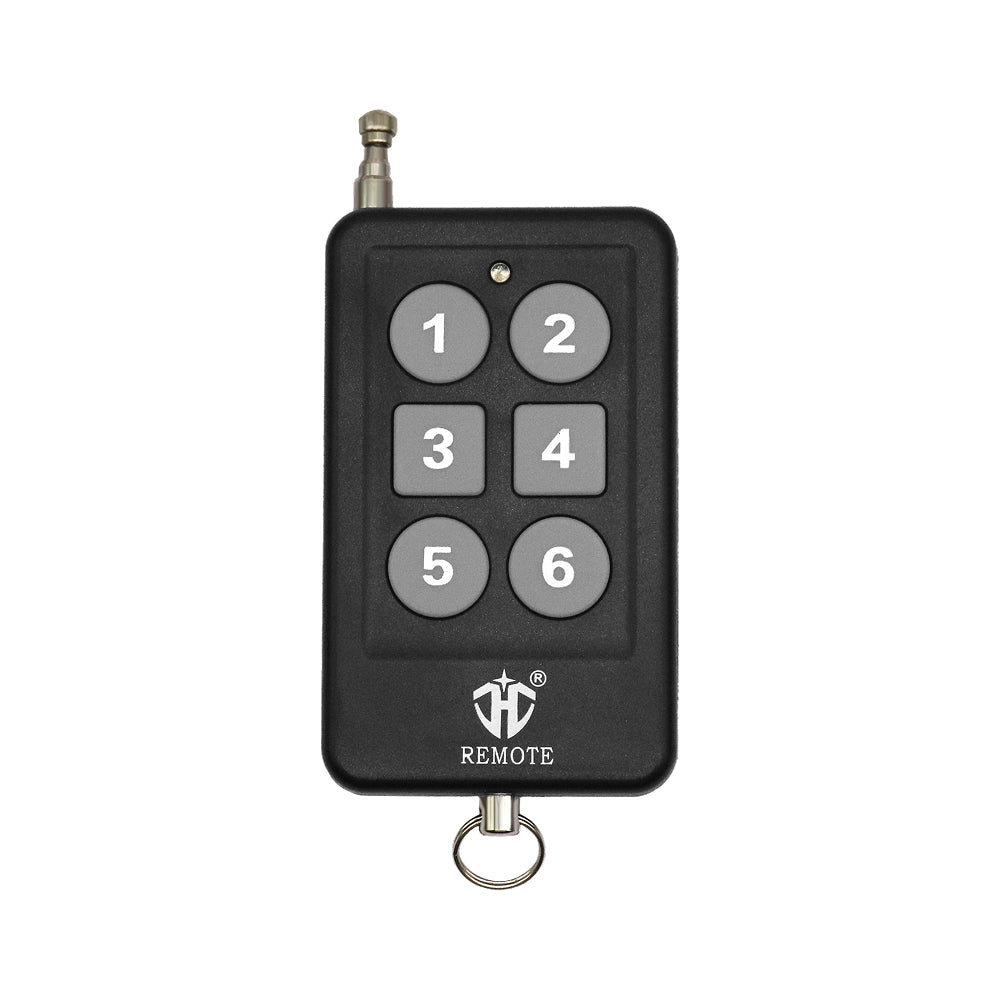

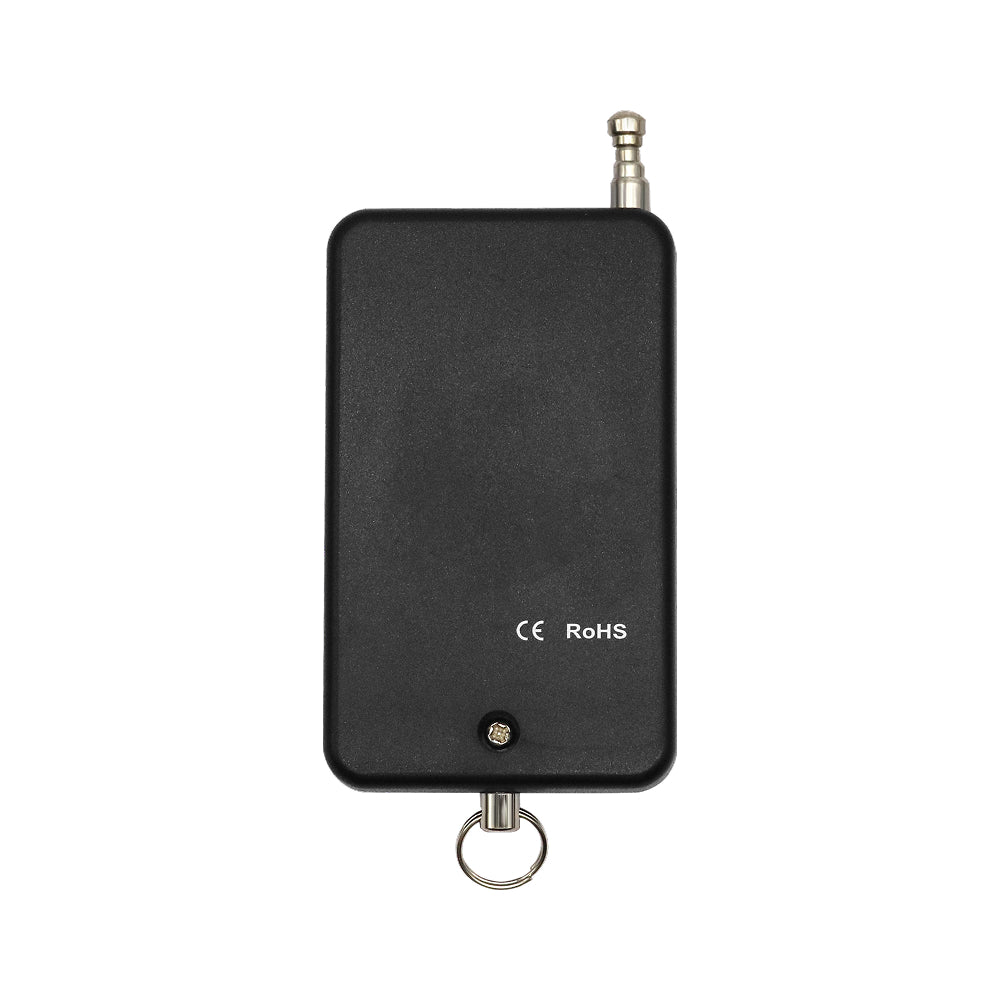

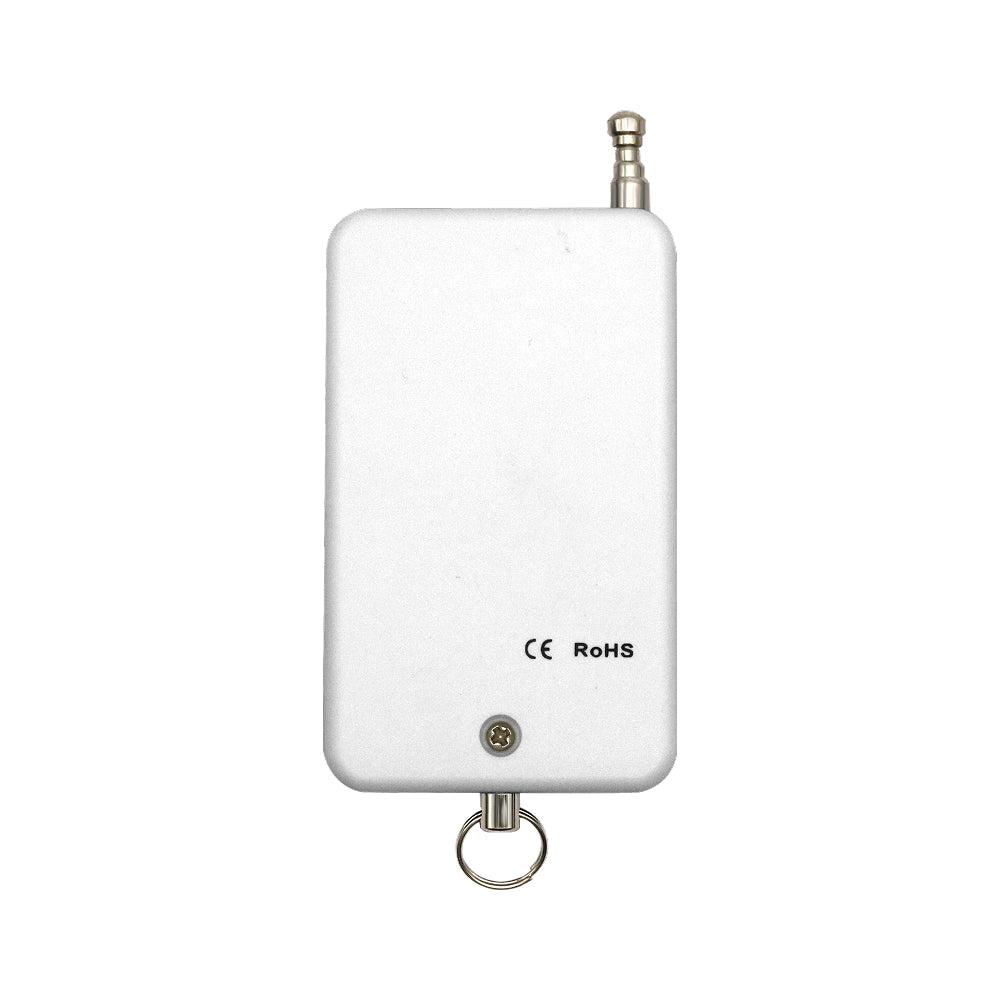

12 Channel Rolling & Fixed Code 280-868 Mhz Universal Remote Duplicator For Roller Shutter Gate Barrier Opener

Product Overview

This universal 12-key Multi-frequency remote control is designed for copying a wide variety of electric vehicle garage door openers, roller shutter doors, telescopic gates, and barrier gates. It supports multiple frequencies range of 280-868 Mhz, making it compatible with a wide range of domestic and international brands. This remote is suitable for fixed-code and rolling-code copying, with easy-to-follow instructions.

Product Features

• Full Frequency Compatibility: Supports frequencies including 433.92 MHz, 433 MHz, 315 MHz, 4208 MHz, 3208 MHz, 310 MHz, 330 MHz, 350 MHz, 365 MHz, 390 MHz, 418 MHz, 430 MHz, 434 MHz, 580 MHz, 868 MHz, and hopping frequencies.
• Wide Brand Support: Compatible with domestic brands like DOOYA, SEASIDE, DOORMAN, FORESEE, AVANTI, VSAFE, and more. Also supports international brands like SOMMER, FAAC, NICE, LIFTMASTER, HORMANN, ATA, GENIUS, and over 300 other rolling-code gate openers.
• Dual-Mode Operation (12 Channels):
  • 12-Channel Control – 6 buttons per mode, allowing multiple device operation witch between two modes, each with 6 buttons:
  • Red Light Mode Activation: Press buttons 1 & 6 together
  • Green Light Mode Activation: Press buttons 2 & 5 together


• Multiple Copy Modes: Standard copy mode for regular remotes and special modes for encrypted remotes and barrier gates, ensuring compatibility with a wide range of devices.

How It Works

1. Enter Copy Mode: Press and hold the 1 key, then press the 2 key four times. Release all keys to enter copy mode.
2. Transmit Data: Press and hold the original remote's key (e.g., unlock key) and wait for the LED on the copying remote to flash rapidly, indicating successful data capture.
3. Save Data: Select the key on the copying remote to store the data (e.g., press the 1 key to save the unlock function).
4. Repeat for Other Keys: Repeat steps 1-3 for all other functions (e.g., lock, stop) to copy them onto different keys.
5. Special Copy Modes:
   • Normal Copy Mode: For standard remotes.
   • Encrypted Copy Mode: Press and hold the 1 key, then press the 3 key four times for encrypted remotes.
   • Barrier Gate Copy Mode: Press and hold the 2 and 3 keys simultaneously for specific barrier gate remotes.

List of Supported Brands and Models
