Security Outdoor Infrared Beam Photocell Sensor for Barrier Gate

Product Overview

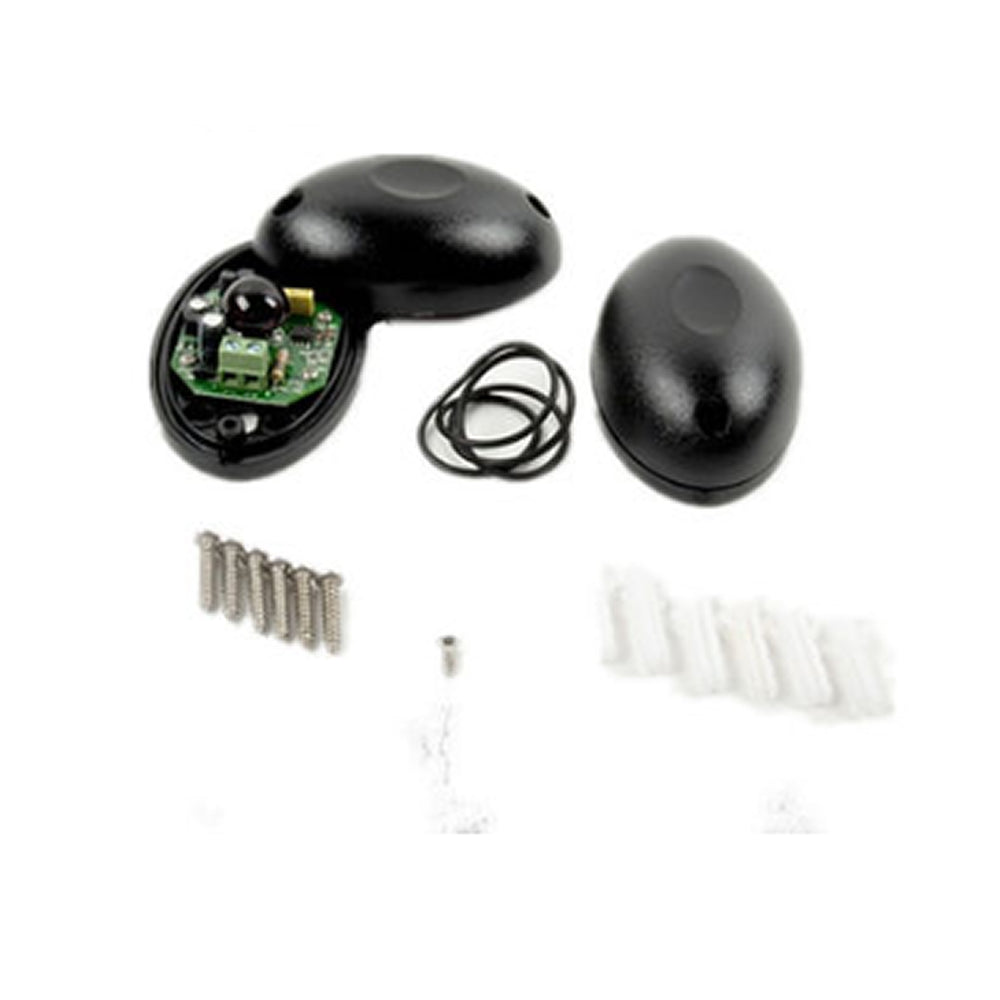

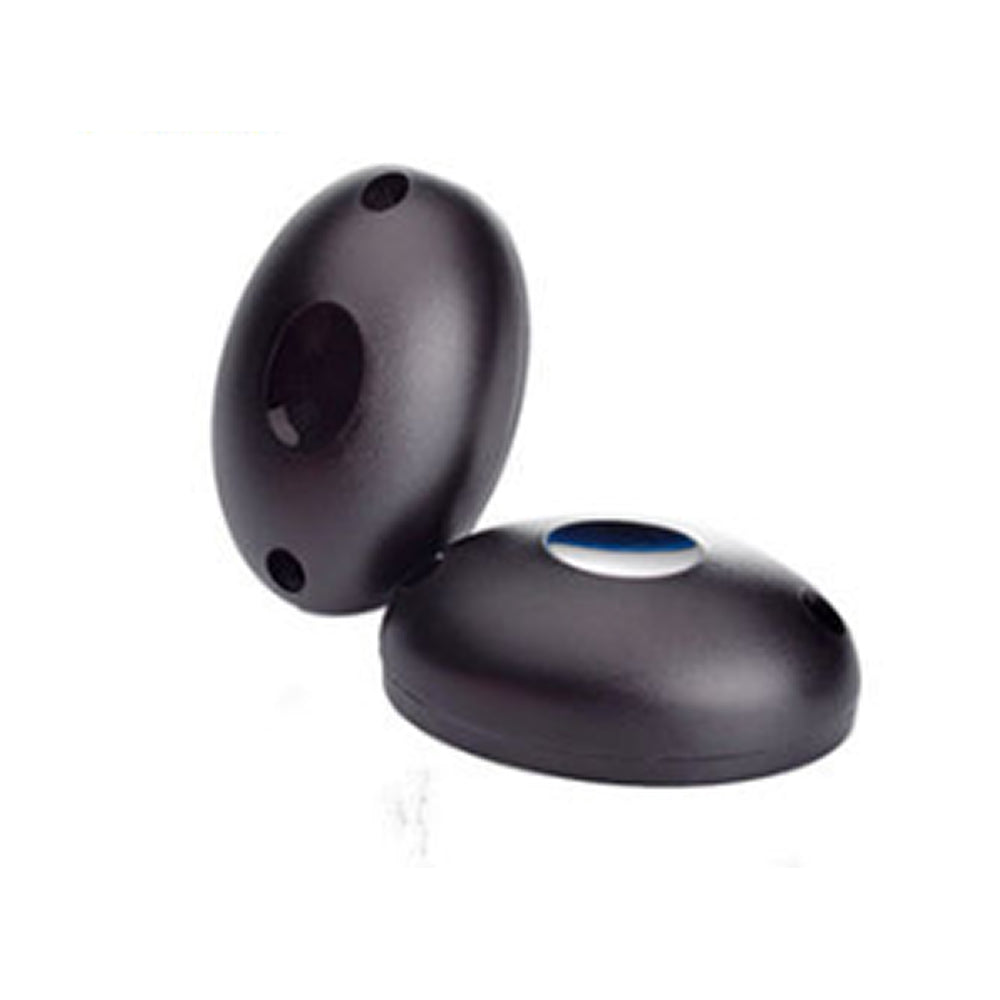

This is an advanced active infrared beam sensor designed for use with barrier gates, garage doors, and car doors. It ensures safety by detecting obstacles in the path of automatic gates and stopping their movement to prevent collisions. This reliable sensor is ideal for outdoor installations and is built to withstand a wide range of environmental conditions.

---

Key Features

• Long Detection Range: The sensor has a receiving range of up to 15 meters, ensuring accurate detection at a significant distance.
• High Stability: Built for reliable operation under various weather and environmental conditions.
• Wide Application: Commonly used in garage doors, barrier gates, and car doors for obstacle detection.
• Relay Output: Supports a relay output of up to 1A (max *36V).
• Durable Construction: The sensor's casing is made of plastic for a lightweight yet sturdy design.

---

Technical Specifications

• Technology: Active infrared beam sensor
• Receiving Range: Up to 15 meters
• Frequency: 1.92KHz
• Input Power: DC/AC 12-24V
• Operating Temperature: -22°C to +55°C
• Wavelength: 940nm
• Plastic Casing
• Input Current:
  • Receiver: 15mA
  • Transmitter: 30mA
• Relay Output: 1A max *36V
• Package: 100 pcs per carton
  • Carton Dimensions: 53.5 x 22.5 x 35 cm

---

Features & Benefits

• High Detection Range: With a range of over 12 meters, this photocell sensor ensures accurate detection of obstacles at a distance, enhancing the safety of automatic gates.
• Stable and Reliable: Offers dependable performance in diverse conditions, making it perfect for outdoor use.
• Quality Assurance: Every unit undergoes a quality inspection process to guarantee reliability and longevity.
• Customizable: OEM or ODM options are available for custom designs or branding to suit specific needs.

---

Applications

This is ideal for use in a variety of automatic gate systems, including:

• Garage Doors
• Barrier Gates
• Car Doors
• Rolling Shutters
• Parking Lot Barriers

---

Installation & Usage

For detailed installation instructions, please refer to the manual included with the product. The sensor is designed for easy setup with standard automatic gate systems and requires minimal maintenance once installed.
