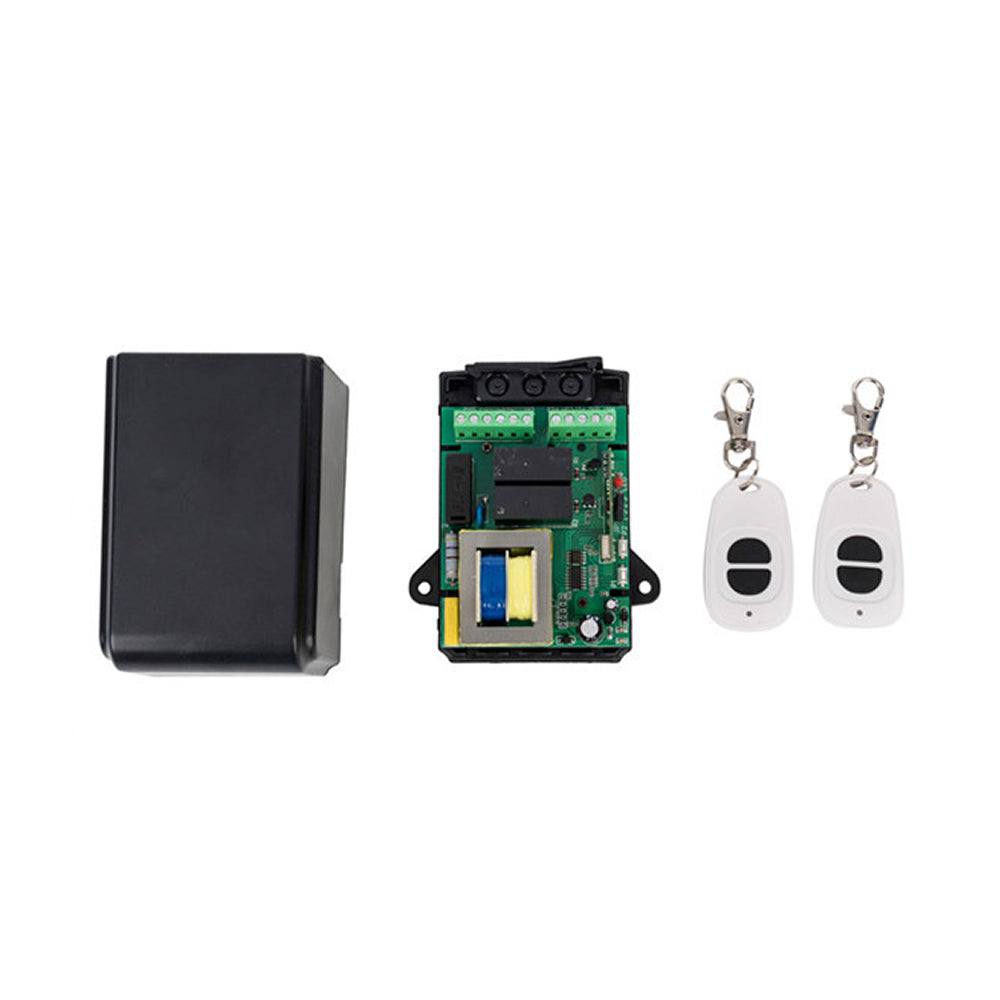

4-Channel 220V AC/DC Motor Receiver

Product Overview

The 4-Channel 220V AC/DC Motor Receiver is designed for controlling motors in a variety of applications, including gates, shutters, and doors. This receiver provides flexible control options, with bistable and monostable operation modes for each channel, and can be programmed with up to four different control units. With a simple setup and efficient operation, this receiver is an excellent choice for both residential and commercial applications.

Key Features

• Four Channels: The receiver can control up to four independent areas or devices.

• Flexible Operation Modes: Supports bistable (toggle) or monostable (momentary) modes for each channel, making it versatile for different needs.

• 220V AC/DC Compatibility: Can be powered using either 220V AC or DC, making it suitable for a variety of installations.

• Easy Programming: Simply press buttons to program or learn remote controls, with clear LED indicators to guide the process.

• Radio Control Acquisition: Easy to program control units with simple key presses. The receiver is pre-programmed and ready for use out of the box.

• Adjustable Working Time: Set and adjust the working time (exit time) for each area, allowing for customized timing to suit the application.

• Delete Radio Control Code: Easily remove individual or all programmed radio control codes with simple button presses.

• Durable and Reliable: Designed to handle a wide range of applications with long-term reliability and performance.

Specifications

• Product Name: 4-Channel 220V AC/DC Motor Receiver
• Channels: 4 Channels (2 independent areas with bistable or monostable operation modes)
• Power Supply: 220V AC/DC
• Learning Mode: Press and hold buttons to acquire control codes
• Function: Motor control (e.g., gate or door opener)
• Control Mode: Bistable or Monostable (configurable for each area)
• Working Time (Exit Time): Adjustable per area
• Programming Method: Easy learning and deletion via control unit buttons
• Code Deletion: Delete individual or all codes with button presses
• LED Indicators: Clear visual feedback for programming and status
• Temperature Range: -25°C to +60°C
• Dimensions: Compact design suitable for various installations

How It Works

1. Programming the Control Unit:

   • Press the P1 button on the control unit to program the receiver.
   • The LED will light up to indicate that the receiver is in programming mode.

2. Learning Radio Controls:

   • To add a remote control, press and hold the acquisition button on the remote until the LED flashes.

3. Setting the Working Time:

   • For Area 1, press the P2 button on the main control unit to set the working time.
   • Repeat for Area 2 to set the working time as needed.

4. Deleting Control Codes:

   • To remove an individual code, press and hold the P1 button for 5 seconds.
   • To delete all codes, press and hold the P1 button for 10 seconds.
